Cardboard Factory Paper Roll Conveyor Design
бренд :NEWKUANI
происхождение продукта :CHINA
время доставки :1MONTH
Video watch of paper mill base paper transportation system：
Rotation Conveyor
1) Main parameter
l Structure composition: Paper roll chain conveyor, rotating 90 degrees mechanism and track composition;
l Rotating motor: 1.1 kw, BONENGG, with brake function;
l The speed of rotation is min 5s per 90 °;
l The rotating mechanism is made up of giant slewing bearing and reducer.
l Bearing is FK brand, chain frame with the introduction of butter, easy to maintain;
l The Paper roll chain conveyors can turn forward and backward
l There are mechanical and electrical limits on the rack;
l The maximum load of the single original paper is 3.5 tons.
l Through the detection of electrical signals, avoid the collision of paper rolls

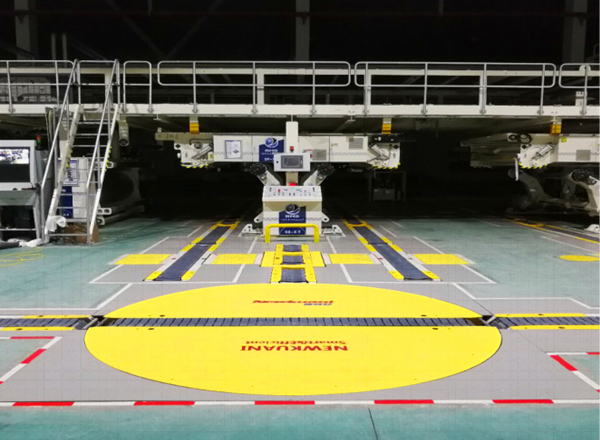

2） Outline picture
