Corrugated Material Handling Conveyor Systems

Paper Roll Transfer Track

1) Main parameter

l Construction: Using 2 C-channel for side frame, central safety cover plate, dolly track with chain inside U-channel

l Drive motor is installed at the end of the track；

l Chain tension tightening device is installed the beginning of the track;

2) Function:

l Due to the tracks and dollies are installed parallel to the roll stand, this allows the ease of roll chucking for the roll stand.

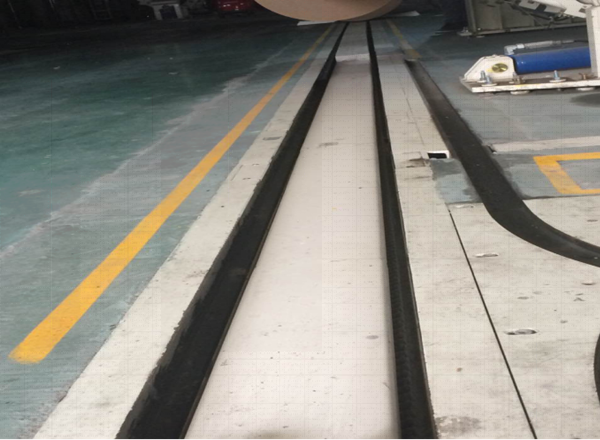

3) Outline picture

Intelligent base paper transportation system video watch：
